Grove 3 axis Accelerometer

Table of Contents

    Introduction

    The "Grove - 3 axis Accelerometer" is a 3 axis accelerometer that is accessible via a digital I2C interface.
    This accelerometer module is based on MMA7660FC chip and it can be used for sensor data changes, product orientation, and gesture detection through an interrupt pin (INT).
    It is a very low power, low profile capacitive MEMS sensor.


    An accelerometer is a device that will measure the static acceleration and the dynamic acceleration.

    • Static acceleration force is generated by a gravitational pull. When measuring static acceleration with a capacitive accelerometer, the measurements would portray the angle of tilt at which the device is being held or suspended in relation to the Earth's gravitational pull.
    • Dynamic acceleration force is generated by vibrations from movement. Measuring vibrations allows a capacitive accelerometer to determine in which direction the device is moving and at what speed.


    Required Components


    Product Specifications

    • Digital Output (I2C)
    • 3 axis motion/orientation sensing
    • Acceleration Range: ±1.5g (1g = 9.8m/s^2)
    • Sensitivity: 21.33 counts/g
    • Working voltage: 3V - 5V
    • Resolution: 6bit


    Pin Description

    /media/uploads/edodm85/devide.jpg


    Connectivity

    HC05 pinMbed pin
    1 - SCLP27 - SCL
    2 - SDAP28 - SDA
    3 - VccVout - 3.3V
    4 - GNDGND

    NOTE: The I2C bus is already connected to pull-up resistor.


    Register Summary

    /media/uploads/edodm85/reg2.jpg

    NOTE: The device must be placed in Standby Mode to change the value of the registers.


    Test Code

    Import program
    TestCode_MMA7660FC - main.cpp

    00001 /* Author: Edoardo De Marchi
00002  * Name: Test Code for MMA7660FC
00003  */
00004 #include "mbed.h"
00005 #include "MMA7660FC.h"
00006
00007 #define ADDR_MMA7660 0x98                   // I2C SLAVE ADDR MMA7660FC
00008
00009 MMA7660FC Acc(p28, p27, ADDR_MMA7660);      //sda, scl, Addr
00010 Serial pc(USBTX, USBRX);
00011
00012
00013 float G_VALUE[64] = {0, 0.047, 0.094, 0.141, 0.188, 0.234, 0.281, 0.328, 0.375, 0.422, 0.469, 0.516, 0.563, 0.609, 0.656, 0.703, 0.750, 0.797, 0.844, 0.891, 0.938, 0.984, 1.031, 1.078, 1.125, 1.172, 1.219, 1.266, 1.313, 1.359, 1.406, 1.453, -1.500, -1.453, -1.406, -1.359, -1.313, -1.266, -1.219, -1.172, -1.125, -1.078, -1.031, -0.984, -0.938, -0.891, -0.844, -0.797, -0.750, -0.703, -0.656, -0.609, -0.563, -0.516, -0.469, -0.422, -0.375, -0.328, -0.281, -0.234, -0.188, -0.141, -0.094, -0.047};
00014
00015
00016
00017 int main()
00018 {
00019
00020     Acc.init();                                                     // Initialization
00021     pc.printf("Value reg 0x06: %#x\n", Acc.read_reg(0x06));         // Test the correct value of the register 0x06
00022     pc.printf("Value reg 0x08: %#x\n", Acc.read_reg(0x08));         // Test the correct value of the register 0x08
00023     pc.printf("Value reg 0x07: %#x\n\r", Acc.read_reg(0x07));       // Test the correct value of the register 0x07
00024
00025     while(1)
00026     {
00027         float x=0, y=0, z=0;
00028
00029         Acc.read_Tilt(&x, &y, &z);                                  // Read the acceleration
00030         pc.printf("Tilt x: %2.2f degree \n", x);                    // Print the tilt orientation of the X axis
00031         pc.printf("Tilt y: %2.2f degree \n", y);                    // Print the tilt orientation of the Y axis
00032         pc.printf("Tilt z: %2.2f degree \n", z);                    // Print the tilt orientation of the Z axis
00033
00034         wait_ms(100);
00035
00036         pc.printf("x: %1.3f g \n", G_VALUE[Acc.read_x()]);          // Print the X axis acceleration
00037         pc.printf("y: %1.3f g \n", G_VALUE[Acc.read_y()]);          // Print the Y axis acceleration
00038         pc.printf("z: %1.3f g \n", G_VALUE[Acc.read_z()]);          // Print the Z axis acceleration
00039         pc.printf("\n");
00040         wait(5);
00041
00042     }
00043 }
00044


    The g values or tilt values are read from the "MM7660FC ACQUISITION CODE TABLE" that you can find it on page 28 of the MMA7660FC datasheet.


    Library

    Import library
    MMA7660FC - MMA7660FC Class Reference

    Public Member Functions

    MMA7660FC (PinName sda, PinName scl, int addr)
    Creates an MMA7660FC object connected to the specified I2C object.
    ~MMA7660FC ()
    Destroys an MMA7660FC object.
    void init ()
    Initialization of device MMA7660FC (required)
    void read_Tilt (float *x, float *y, float *z)
    Read the Tilt Angle using Three Axis.
    int read_x ()
    Reads the x register of the MMA7660FC .
    int read_y ()
    Reads the y register of the MMA7660FC .
    int read_z ()
    Reads the z register of the MMA7660FC .
    char const * read_Side ()
    Reads the Front or Back position of the device.
    char const * read_Orientation ()
    Reads the Orientation of the device.
    char read_reg (char addr)
    Reads from specified MMA7660FC register.
    void write_reg (char addr, char data)
    Writes to specified MMA7660FC register.
    int check ()
    Checks if the address exist on an I2C bus.


    The initialization is needed because it sets the "Mode" register to "Active Mode" which is required for read the data of the x,y,z axis.

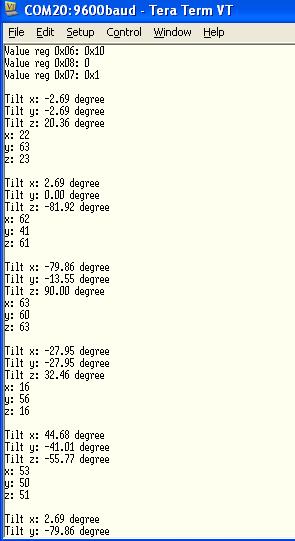

    Output

    /media/uploads/edodm85/read_g3.jpg


    Other information you can be found in my notebook page HERE
