Remote Procedure Call over Websockets¶

Introduction¶

Imagine that you have several Mbeds and you want to trigger the execution of a specific procedure or method on a specific Mbed from another one. How can you do that ?
The Remote Procedure Call (RPC) mechanism is a solution.

General Idea¶

To make the RPC possible, all Mbeds have to be connected on the same network. I have chosen to connect them to the Internet over a Websocket communication. If you are not familiar with Websockets, you can follow this tutorial to use them on your Mbed.

The sequence of an RPC operation: (let's suppose that you have two Mbeds: mbed_1 and mbed_2)

• mbed_1 calls a local method with parameters for the non local one.
• This call function packs the parameters, the name of the function to be executed,... into a message and sends it to mbed_2
• mbed_2 receives this message, decodes it, executes the function and sends to mbed_1 a new message containing the result of the function execution.
• mbed_1 receives the previous message and can handle the results of the non-local function.

  All exchanged messages are in JSON format.

Example of architecture¶

On this diagram, you can distinguish two main elements:

• Two different sub-networks. On each sub-networks, all Mbeds can share methods or execute a non-local one.
• A RPC Websocket server which is responsible to manage all sub-networks and all messages exchanged. This server is written in Python and uses Tornado.

Method registering step¶

The first sub-network (at the top) explains the method registering step with the help of the register method.

After this step, the client can call this method.

Call step¶

The second sub-network (at the bottom) is more interesting. It describes a call step. There are four different Mbeds:

• mbed_acc where a method getAcc has been successfully registered (these method returns values from accelerometers connected to the Mbed)
• mbed_light with a method getLight which returns the light level
• mbed_press with a method getPress which returns the pressure value
• mbed_client



mbed_client calls the function "call" where:

• "getAcc" is the name of the distant function
• "mbed_acc" is the name of the distant Mbed on the sub-network (where will be executed the method)
• in represents the arguments to be passed to the distant method
• out will be the results of the distant method execution

On this example, after the call step, mbed_client can handle accelerometers values returned by the method getAcc.

Connection to the Websocket server¶

Type of parameters: MbedJSONValue type¶

In the previous section, in and out parameters are represented by a specific object: MbedJSONValue. Let's suppose that getAcc doesn't take argument but returns an array of three Integers (acceleration on x, y and z).

The code for this method can be (on mbed_acc):

    void getAcc(MbedJSONValue& in, MbedJSONValue& out) {

        //reading accelerometers values
        int readings[3] = {0, 0, 0};
        accelerometer.getOutput(readings);

        //store the previous values in the out parameter (the in parameter is ignored)
        out[0] = readings[0];
        out[1] = readings[1];
        out[2] = readings[2];
    }

And on mbed_client, there is something like:

        //in parameter dosn't need to be filled as getAcc ignores it
        MbedJSONValue in, out;

        //call the non-local method
        rpc.call("getAcc", "mbed_acc", in, out));

        //print accelerometers values stored in the out parameter
        printf("acc_x: %d\r\n", out[0].get<int>());
        printf("acc_y: %d\r\n", out[1].get<int>());
        printf("acc_z: %d\r\n", out[2].get<int>());

For more information on the MbedJSONValue type, please take a look to the MbedJSONValue description.

Demo¶

I have two Mbeds:

• mbed_acc: One with an accelerometer and a wifi module. This Mbed will register a method getAcc.
• mbed_client: Another with just an RJ45 Jack. This Mbed will call getAcc.

mbed_acc¶

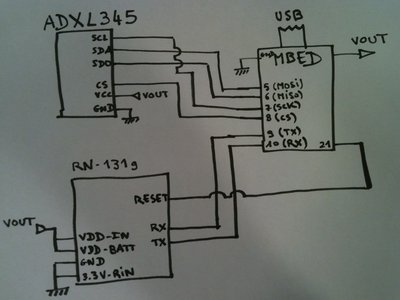

- Schematics:


- Code:

#include "mbed.h"
#include "MbedJSONRpc.h"
#include "MbedJSONValue.h"
#include "Websocket.h"
#include "ADXL345.h"
#include "Wifly.h"

ADXL345 accelerometer(p5, p6, p7, p8);
Serial pc(USBTX, USBRX);

//wifi module
Wifly wifly(p9, p10, p21, "NETGEAR", "hello", true);

//websocket: configuration with sub-network = samux and mbed_id = mbed_acc
Websocket webs("ws://sockets.mbed.org/rpc/samux/mbed_acc",&wifly);

//RPC object attached to the websocket server
MbedJSONRpc rpc(&webs);


//Acc class. The method getAcc of this class will be registered
class Acc {
public:
    Acc() {};
    void getAcc(MbedJSONValue& in, MbedJSONValue& out) {
        int readings[3] = {0, 0, 0};
        accelerometer.getOutput(readings);
        out[0] = readings[0];
        out[1] = readings[1];
        out[2] = readings[2];
    }
};

Acc acc;



int main() {

    RPC_TYPE t;

    //-------Accelerometers init---------//

    pc.printf("Starting ADXL345 test...\r\n");
    pc.printf("Device ID is: 0x%02x\r\n", accelerometer.getDevId());

    //Go into standby mode to configure the device.
    accelerometer.setPowerControl(0x00);

    //Full resolution, +/-16g, 4mg/LSB.
    accelerometer.setDataFormatControl(0x0B);

    //3.2kHz data rate.
    accelerometer.setDataRate(ADXL345_3200HZ);

    //Measurement mode.
    accelerometer.setPowerControl(0x08);

    //------------connection to the router and to the websocket server----------//
    while (1) {

        while (!wifly.Join())  //we connect to the network
            wifly.reset();

        if (!webs.connect())    //we connect to the server
            wifly.reset();
        else
            break;
    }

    //------------register getAcc---------------//
    if((t = rpc.registerMethod("getAcc", &acc, &Acc::getAcc)) == REGISTER_OK)
        printf("getAcc is registered\r\n");
    else
        printType(t);

    //wait for incoming CALL requests
    rpc.work();
}

This code is very simple:

• Declare a class (here Acc) with a method having the good signature to be registered to the RPC server.
• Connection to the router and to the RPC websocket server (with a Wifi module)
• Register getAcc method
• Wait for incoming CALL requests


  [Not converted]

mbed_client¶

- Schematics:

-Code:

#include "mbed.h"
#include "MbedJSONRpc.h"
#include "MbedJSONValue.h"
#include "Websocket.h"

Serial pc(USBTX, USBRX);

//websocket: configuration with sub-network = samux and mbed_id = mbed_acc
Websocket webs("ws://sockets.mbed.org/rpc/samux/client");

//RPC object attached to the websocket server
MbedJSONRpc rpc(&webs);

int main() {

    RPC_TYPE t;

    //in: argument for the distant method (here empty)
    //out results of the distant method (accelerometers values)
    MbedJSONValue in, out;

    while (!webs.connect())
        pc.printf("cannot connect websocket, retrying\r\n");

    //CALL getAcc on mbed_acc
    if ((t = rpc.call("getAcc", "mbed_acc", in, out)) == CALL_OK) {
        printf("call success\r\n");
        printf("acc_x: %d\r\n", out[0].get<int>());
        printf("acc_y: %d\r\n", out[1].get<int>());
        printf("acc_z: %d\r\n", out[2].get<int>());
    } else
        printType(t);
}

This code is another time very simple:

• Connection to the RPC Websocket server
• Call getAcc on mbed_acc
• If all is OK, print accelerometers values


  Import programRPC_mbed_client

  Example using MbedJSONRpc: call distant method

  Last commit 03 Oct 2011 by Samuel Mokrani

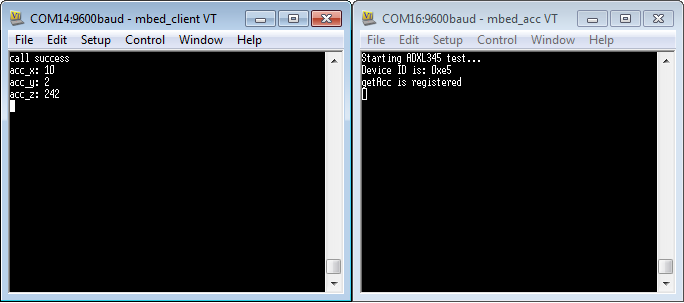

Results¶

Et Voila, on mbed_client, we can handle accelerometers values!

Conclusion¶

You are now able to call every registered functions on your sub-network from an Mbed connected to the RPC Websocket server on the same sub-network.

You can control everything from everywhere !
