An interface for controlling a 130x130 Nokia mobile phone display.

Nokia LCD

There are a number of different hardware breakouts available for these panels. See:

The LCD panels themselves also vary, particularly whether they use an Epson or Philips driver. This library aims to support both types. Fiddle with the type parameter if yours doesn't seem to work.

Hello World!

Import program
NokiaLCD_HelloWorld - main.cpp

00001 // Hello World! for Nokia LCD, sford
00002 // - LCD6610 is for newest Sparkfun breakout
00003
00004 #include "mbed.h"
00005 #include "NokiaLCD.h"
00006
00007 NokiaLCD lcd(p5, p7, p8, p9, NokiaLCD::LCD6610); // mosi, sclk, cs, rst, type
00008
00009 int main() {
00010     lcd.background(0x0000FF);
00011     lcd.cls();
00012     lcd.fill(2, 51, 128, 10, 0x00FF00);
00013     lcd.fill(50, 1, 10, 128, 0xFF0000);
00014     lcd.locate(0,3);
00015     lcd.printf("Hello World!");
00016     for (int i=0; i<130; i++) {
00017         lcd.pixel(i, 80 + sin((float)i / 5.0)*10, 0x000000);
00018     }
00019 }

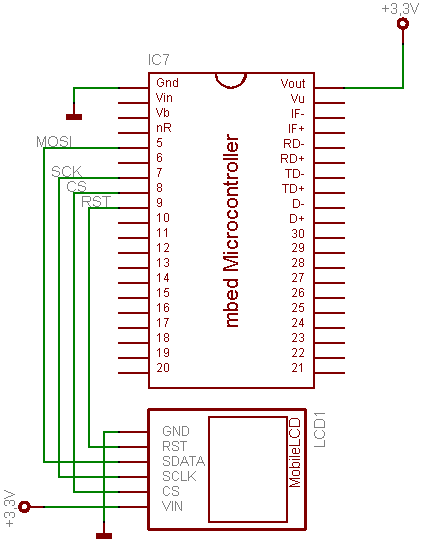

/media/uploads/simon/mobilelcdschematic1.png /media/uploads/simon/mobilelcdphoto.jpg

On other displays, you may also have to wire e.g. VBATT (the screen backlight) to 3.3v

Library

Import library
NokiaLCD - NokiaLCD Class Reference

Public Types

enum LCDType { LCD6100 , LCD6610 }

LCD panel format.

More...

Public Member Functions

NokiaLCD (PinName mosi, PinName sclk, PinName cs, PinName rst, LCDType type=LCD6100)
Create and Nokia LCD interface, using a SPI and two DigitalOut interfaces.
int putc (int c)
Write a character to the LCD.
int printf (const char *format,...)
Write a formated string to the LCD.
void locate (int column, int row)
Locate to a screen column and row.
void cls ()
Clear the screen and locate to 0,0.
void pixel (int x, int y, int colour)
Set a pixel on te screen.
void fill (int x, int y, int width, int height, int colour)
Fill an area of the screen.
void foreground (int c)
Set the foreground colour.
void background (int c)
Set the background colour.

HO WING KIT [04/07/2011]

I updated a few information.

1. NOKIA LCD 6610 should be 132x132 not (130x130)

2. I have modified the NOKIA LCD library.

- add fonts (SMALL 6x8 /MEDIA 8x8 /LARGE 8x16)

Import libraryNokiaLCD

1. Add SMALL(8x6)/ MEDIUM(8x8)/ LARGE (8x16) fonts.\\2. Add function setfont(SMALL/MEDIUM/LARGE) to set fonts.

Last commit 04 Jul 2011 by HO WING KIT

Other Reference

All wikipages
