Fork of non-os_oss by Rikita YAMADA

SW_Config

Table of Contents

  1. Software configuration
  2. Start development.
  3. Edit source code

Software configuration

Start development.

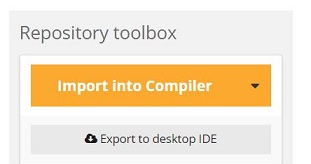

Please go to this project's Home, then click "Import into Compiler". Then you will find imported source code in your compiler environment.

/media/uploads/rikita/import.jpg

Edit source code

AKM_Config.h

Please define magnetometer and accelerometer. Supported devices are listed in AKM_DEVICES.

Example of definition

enum AKM_DEVICES {
    /* Empty sensors. These are not phisical sensor */
    AKM_DEVICE_NONE = -1,
    AKM_DEVICE_TEST = 0,

    /* List of supported sensors.
     * List is grouped by a sensor module. */

    /* aks_mag_ak8963 */
    AKM_MAGNETOMETER_AK8963,

    /* aks_mag_ak099xx */
    AKM_MAGNETOMETER_AK09911,
    AKM_MAGNETOMETER_AK09912,
    AKM_MAGNETOMETER_AK09913,
    AKM_MAGNETOMETER_AK09915,
    AKM_MAGNETOMETER_AK09915D,
    AKM_MAGNETOMETER_AK09916C,
    AKM_MAGNETOMETER_AK09916D,
    AKM_MAGNETOMETER_AK09917D,
    AKM_MAGNETOMETER_AK09918,

    /* aks_ir_ak9752 */
    AKM_INFRARED_AK9752,

    /* aks_acc_adxl34x */
    AKM_ACCELEROMETER_ADXL345,
    AKM_ACCELEROMETER_ADXL346,

    /* aks_gyr_l3g4200d */
    AKM_GYROSCOPE_L3G4200D,
    AKM_GYROSCOPE_L3GD20,

    /* aks_acc_gyr_bmi160 */
    AKM_ACCELEROMETER_BMI160,
    AKM_GYROSCOPE_BMI160,
};

/*** Define one of the definition in your make file. ***/
#define CONFIG_SLOT1  AKM_MAGNETOMETER_AK09917D
#define CONFIG_SLOT2  AKM_ACCELEROMETER_BMI160
#define CONFIG_SLOT3  AKM_GYROSCOPE_BMI160
