IQS622

Azoteq IQS622 ultra low power sensor for ambient light, active (reflective) IR, magnetic field, capacitance and inductive proximity. Empowers next-generation user interfaces.

Hello World

Import programIQS622_HelloWorld

Ultra Low Power (5uA) I2C Multi-Function Sensor with Light Sensor + Active (Reflective) IR + Touch + Hall Effect Sensor

Last commit 23 Jan 2018 by Azoteq

Library

Import libraryIQS62x

Library to read and write Azoteq IQS6xx device registers via I2C.

Last commit 21 Mar 2018 by Azoteq

Pinout

Datasheet

http://www.azoteq.com/products/proxfusion/iqs622?mbed

Notes

Connecting IQS622 to mbed Hardware


/media/uploads/AzqDev/iqs622-3-connect-mbed-i2c-ultra-low-power-sensor-with-light-sensor-active-ir-capacitive-touch.gif

/media/uploads/AzqDev/iqs622-4-lpc1768-mbed-i2c-ultra-low-power-sensor-with-light-sensor-active-ir-capacitive-touch.gif
IQS622 Connected to mbed LPC1768 board.
The three green wires are SDA, SCL and RDY.
The red and black wires are GND and 3.3V.

Data Sheet & Eval Kit Information


http://www.azoteq.com/products/proxfusion/iqs622?mbed

IQS622DisplayTerminal Library


Formatted Display of IQS622 registers on a serial terminal.

Import libraryIQS622DisplayTerminal

Register Display On Serial Terminal For Azoteq IQS622 Ultra Low Power (5uA) I2C Multi-Function Sensor with Light Sensor + Active (Reflective) IR + Touch + Hall Effect Sensor

Last commit 14 May 2017 by Azoteq

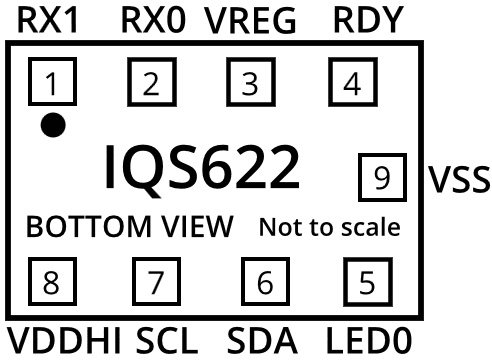

IQS622 Pinout


/media/uploads/AzqDev/packageoutline622-1r.jpg

Handy Table of ProxFusion Device Features


ALS = Ambient Light Sensor PIR = Passive Infrared

/media/uploads/AzqDev/mbed-azoteq-proxfusion-handy-table-of-product-features.jpg

For more information visit: http://www.azoteq.com/products/proxfusion/iqs622
