IQS621

Azoteq IQS621 ultra low power sensor for ambient light, magnetic field, capacitance and inductive proximity. Empowers next-generation user interfaces.

Hello World

Import programIQS621_HelloWorld

Ultra Low Power (5uA) I2C Sensor With Ambient Light Sensing (ALS) + Capacitive Proximity/Touch + Hall Effect Sensor + Inductive Proximity (Metal Detect)

Last commit 23 Jan 2018 by Azoteq

Library

Import libraryIQS62x

Library to read and write Azoteq IQS6xx device registers via I2C.

Last commit 21 Mar 2018 by Azoteq

Pinout

Datasheet

http://www.azoteq.com/products/proxfusion/iqs621?mbed

Notes

Connecting IQS621 to mbed Hardware


/media/uploads/AzqDev/iqs621-3-mbed-nucleo-i2c-ultra-low-power-sensor-for-ambient-light-capacitive-touch-temperature.gif

/media/uploads/AzqDev/iqs621-is-mbed-lpc1768-i2c-ultra-low-power-sensor-for-ambient-light-capacitive-touch-hall-effect.gif
IQS621 Connected to mbed LPC1768 board.
The three green wires are SDA, SCL and RDY.
The red and black wires are 3.3V and ground (VSS).

Data Sheet & Eval Kit Information


http://www.azoteq.com/products/proxfusion/iqs621?mbed

IQSDisplayTerminal Library


Formatted Display of IQS621 registers on a serial terminal.

Import libraryIQS621DisplayTerminal

Register display for Azoteq IQS621 ultra low power I2C multi-function sensor.

Last commit 21 Mar 2018 by Azoteq

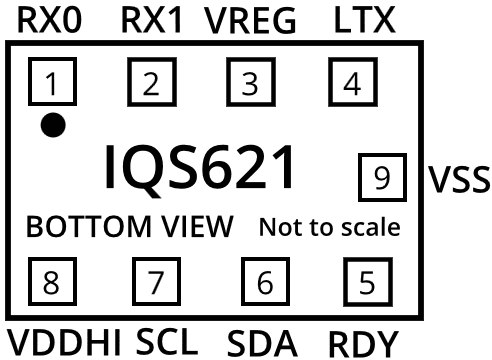

IQS621 Pinout


/media/uploads/AzqDev/packageoutline621-1r.jpg

Handy Table of ProxFusion Device Features


ALS = Ambient Light Sensor PIR = Passive Infrared

/media/uploads/AzqDev/mbed-azoteq-proxfusion-handy-table-of-product-features.jpg

Buy Now


Mouser https://www.mouser.co.za/ProductDetail/Azoteq/IQS6210U9R?qs=AgiijzuozROEnRdOSb2uZw%3d%3d

For more information visit: http://www.azoteq.com/products/proxfusion/iqs621
