    semihostingの使い方

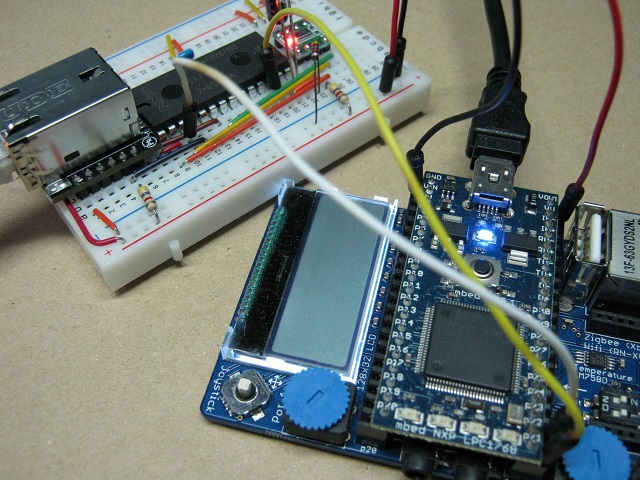

    mbedとLPC1114FN28をSWD接続

    mbedLPC1114FN28
    p21dp12(SWDIO)
    p22dp3(SWCLK)

    SWD

    プログラム作成 For example:

    main.cpp on LPC1114FN28

    #include "mbed.h"
#include "SWDSerial.h"
SWDSerial pc;
LocalFileSystem local("local");

int main()
{
    FILE* fp = fopen("/local/MBED.HTM", "r"); // SYS_OPEN
    if (fp) {
        for(int i = 0; i < 176; i++) {
            pc.putc(fgetc(fp)); // SYS_READ,SYS_WRITEC
        }
        fclose(fp); // SYS_CLOSE
    }
    exit(0); // SYS_EXIT
}

    Import librarySWDSerial

    output stream library using SYS_WRITEC(0x03).

    Last commit 08 Sep 2013 by Norimasa Okamoto

    実行する run：

    semihosting

    Warning

    表示速度はUARTより非常に遅いです。Display speed is very slow than UART.

    lets enjoy printf debugging!
