ECE4180 - Lab 4 Mini Design Project: Semi-Autonomous Security Patrol Robot

Semi-Autonomous Security Patrol Robot is a simple 2 wheeled robot which performs a security patrol on a designated route. In this mini project, the robot was made only to go straight to simplify things. Upon the detection of an enemy during patrol, this robot will sound an alarm and switch over to manual mode for the operator to control. The operator can then control the robot to chase after the enemy using the blue-tooth established connection with the Adafruit LE UART module connected to the Adafruit application on a phone.

/media/uploads/zmcpro2/semi-autonomous_robot.jpg /media/uploads/zmcpro2/adafruit_le_uart_controller_pad.png

Video Demonstration
/media/uploads/zmcpro2/robot_demonstration.mp4

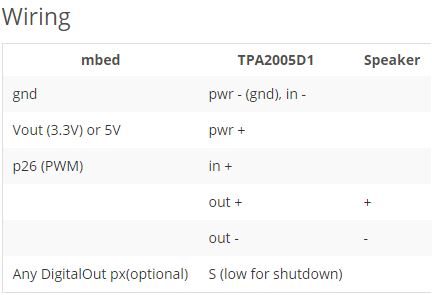

Speaker Wiring
/media/uploads/zmcpro2/speaker_wiring.jpg

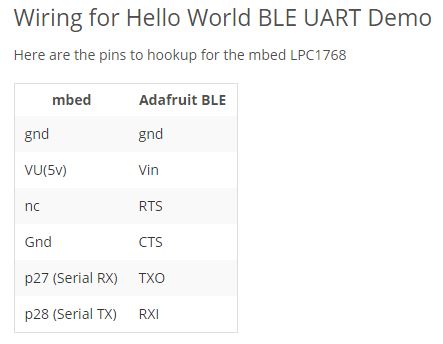

Adafruit Bluetooth Wiring
/media/uploads/zmcpro2/adafruit_bluetooth_wiring.jpg

H-bridge connection

mbed LPC1768 - TB6612FNG
PWMA - p21
PWMB - p23
AIN1 - p7
AIN2 - p8
BIN1 - p5
BIN2 - p6
A01 - Right motor +ve
A02 - Right motor -ve
B02 - Left motor +ve
B01 - Left motor -ve

Ultrasonic Sensor Wiring

mbed LPC1768 - HC-SR04
Vu (5V) - Vcc
Gnd - Gnd
p9 - trig
p10 - echo

Import programLAB_4_MAIN_copy

For Publish

Semi Autonomous Security Patrol Robot

#include "mbed.h"
#include "motordriver.h"
#include "ultrasonic.h"
#include "SongPlayer.h"
int x=1;


void dist(int distance)
{
    if (distance<100){
        x=0;
        }
    //put code here to execute when the distance has changed
    printf("Distance %d mm\r\n", distance);

}


ultrasonic mu(p9, p10, .1, 1, &dist);
//BusOut myled(LED1,LED2,LED3,LED4);
DigitalOut led1(LED1);
DigitalOut led2(LED2);
DigitalOut led3(LED3);
DigitalOut led4(LED4);
Serial blue(p28,p27);
AnalogIn ain(A0); //p15
SongPlayer mySpeaker(p26);
Motor A(p23, p6, p5, 1); // pwm, fwd, rev, can brake
Motor B(p21, p7, p8, 1); // pwm, fwd, rev, can brake

float note[18]= {1568.0,1396.9,1244.5,1244.5,1396.9,1568.0,1568.0,1568.0,1396.9,
                 1244.5,1396.9,1568.0,1396.9,1244.5,1174.7,1244.5,1244.5, 0.0
                };
float duration[18]= {0.48,0.24,0.72,0.48,0.24,0.48,0.24,0.24,0.24,
                     0.24,0.24,0.24,0.24,0.48,0.24,0.48,0.48, 0.0
                    };

int main()
{

    mu.startUpdates();//start measuring the distance
    char bnum=0;
    char bhit=0;

    while(x==1){
        mu.checkDistance();

        led1 = (ain > 0.15f) ? 1 : 0;
        led2 = (ain > 0.30f) ? 1 : 0;
        led3 = (ain > 0.45f) ? 1 : 0;
        led4 = (ain > 0.7f) ? 1 : 0;
        A.speed(0.4);
        B.speed(0.4);




       // printf("Distance %d mm\r\n", distance);

    }
        mySpeaker.PlaySong(note,duration);
    // loops forever while song continues to play to end using interrupts
        A.speed(0);
        B.speed(0);
    while(1){
            if (blue.getc()=='!') {
                if (blue.getc()=='B') { //button data packet
                    bnum = blue.getc(); //button number
                    bhit = blue.getc(); //1=hit, 0=release
                    if (blue.getc()==char(~('!' + 'B' + bnum + bhit))) { //checksum OK?
                       // myled = bnum - '0'; //current button number will appear on LEDs
                        switch (bnum) {
                            case '1': //number button 1
                                if (bhit=='1') {
                                    A.speed(0);
                                    B.speed(0);
                                } else {
                                    //add release code here
                                }
                                break;
                            case '2': //number button 2
                                if (bhit=='1') {
                                    //add hit code here
                                } else {
                                    //add release code here
                                }
                                break;
                            case '3': //number button 3
                                if (bhit=='1') {
                                    //add hit code here
                                } else {
                                    //add release code here
                                }
                                break;
                            case '4': //number button 4
                                if (bhit=='1') {
                                    //add hit code here
                                } else {
                                    //add release code here
                                }
                                break;
                            case '5': //button 5 up arrow
                                if (bhit=='1') {
                                    A.speed(1);
                                    B.speed(1);
                                    wait(0.02);
                                } else {
                                    //add release code here
                                }
                                break;
                            case '6': //button 6 down arrow
                                if (bhit=='1') {
                                    A.speed(-1);
                                    B.speed(-1);
                                    wait(0.02);
                                } else {
                                    //add release code here
                                }
                                break;
                            case '7': //button 7 left arrow
                                if (bhit=='1') {
                                    A.speed(-1);
                                    B.speed(1);
                                    wait(0.02);
                                } else {
                                    //add release code here
                                }
                                break;
                            case '8': //button 8 right arrow
                                if (bhit=='1') {
                                    A.speed(1);
                                    B.speed(-1);
                                    wait(0.02);
                                } else {
                                    //add release code here
                                }
                                break;
                            default:
                                A.speed(0.3);
                                B.speed(0.3);
                                break;
                        }
                    }
                }
           }
     }
}
