Ch4_3. 지그비 구동하기
학습 내용
SD 카드홀더가 장착되어 있는 Workshop 보드에서 SD카드에 데이터를 저장하는 과정을 학습하게 됩니다.

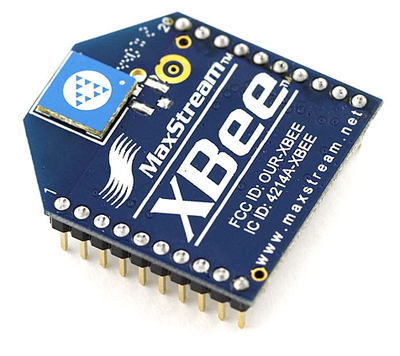

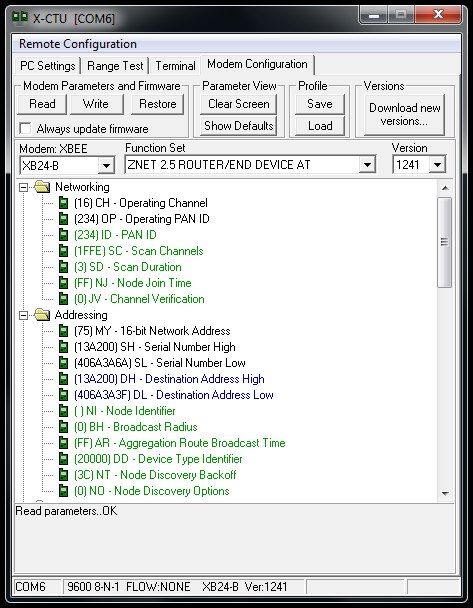

배선도 & 회로도

- 1 VCC :3.3v
- 2 DOUT :mbed serial rx (e.g. p10)
- 3 DIN :mbed serial tx (e.g. p9)
- 4 not connected
- 5 RESET :mbed digital out (e.g p11)
- 6-9 not connected
- 10 GND :0v/GND
- 11-20 not connected
배선 사진
코딩
/**
* XBee Example Test
* A test application that demonstrates the ability
* of transmitting serial data via an XBee module with
* an mbed microprocesor.
* By: Vlad Cazan
* Date: Tuesday, September 29th 2009
*/
#include "mbed.h"
Serial xbee1(p9, p10); //Creates a variable for serial comunication through pin 9 and 10
DigitalOut rst1(p11); //Digital reset for the XBee, 200ns for reset
DigitalOut myled(LED3);//Create variable for Led 3 on the mbed
DigitalOut myled2(LED4);//Create variable for Led 4 on the mbed
Serial pc(USBTX, USBRX);//Opens up serial communication through the USB port via the computer
int main() {
rst1 = 0; //Set reset pin to 0
myled = 0;//Set LED3 to 0
myled2= 0;//Set LED4 to 0
wait_ms(1);//Wait at least one millisecond
rst1 = 1;//Set reset pin to 1
wait_ms(1);//Wait another millisecond
while (1) {//Neverending Loop
if (pc.readable()) {//Checking for serial comminication
myled = 0; //Turn Led 3 Off
xbee1.putc(pc.getc()); //XBee write whatever the PC is sending
myled = 1; //Turn Led 3 on for succcessfull communication
}
}
}
라이브러리
학습 참고
