Project Motivation and Description

main.cpp

#include "mbed.h"

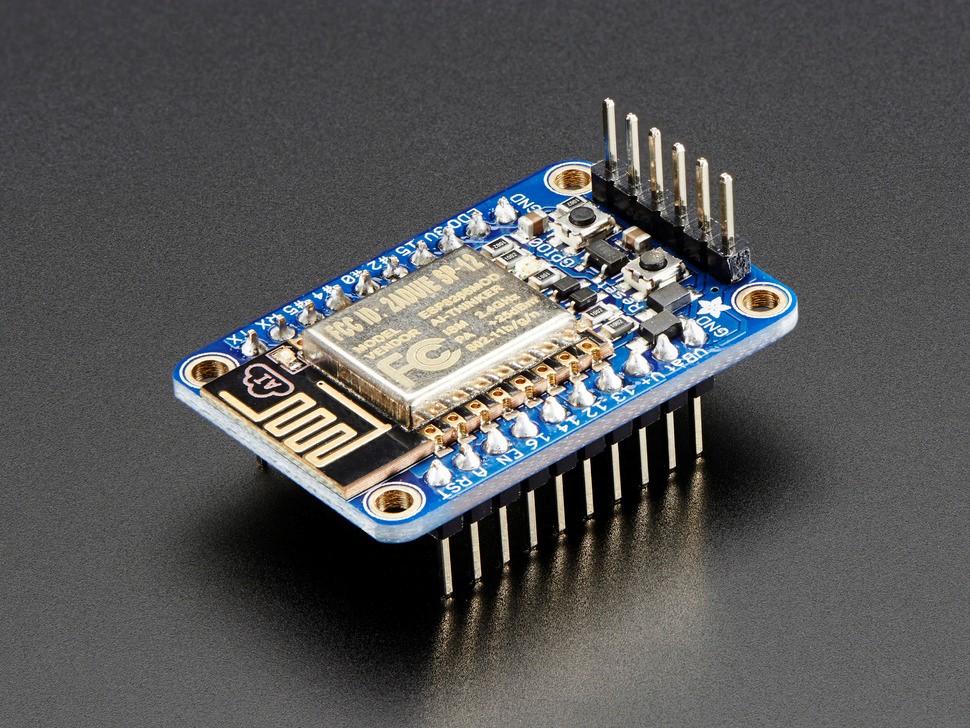

#include "ESP8266_Huzzah.h"

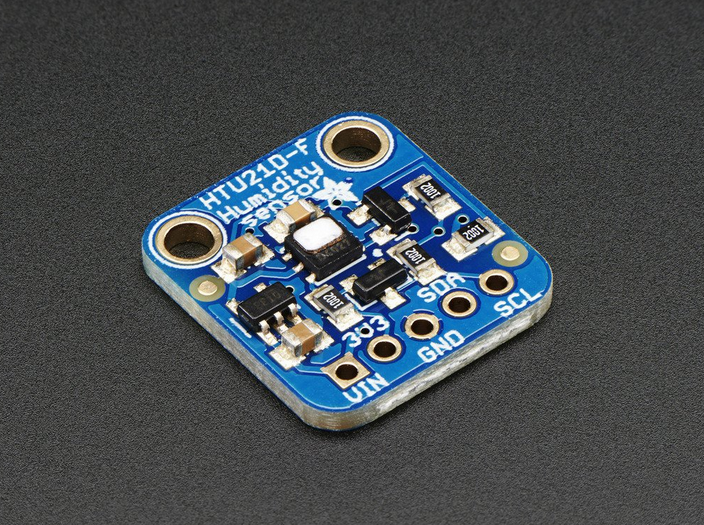

#include "HTU21D.h"
#include "rtos.h"
#include "wave_player.h"
#include "SDFileSystem.h"
#include "Server.h"




HTU21D temphumid(p9, p10); //Temp humid sensor || SDA, SCL
AnalogIn gas_lvl(A0);
AnalogIn water_lvl(A1);

SDFileSystem sd(p5, p6, p7, p8, "sd"); // SD card card reader

AnalogOut DACout(p18); // used to play sound on speaker
//wave player plays a *.wav file to D/A and a PWM
wave_player waver(&DACout);



float sample_ftemp=0.0;
float sample_humid=0.0;
float gas_density=0.0;
float gas_density_init = 0.0;
float gasDiff = 0.2;
float water_level=0.0;
float critWater = 0.10; // critical water level
bool soundOn = false;

bool tempAlerted = false;
bool gasAlerted = false;
bool humidAlerted = false;
bool waterAlerted = false;

Mutex mutex;
Mutex thMutex;
Mutex wifi;
Mutex waterMutex;
Thread *(sound);

DigitalOut gasLed(p11);
DigitalOut waterLed(p21);
DigitalOut tempLed(p22);
DigitalOut humidLed(p23);
Timer tt;

//========= Set up ESP8266 to act as server/client =========//
void ESP8266_config()
{

    reset=0; //hardware reset for 8266
    pc.baud(9600);  // set what you want here depending on your terminal program speed
    pc.printf("\f\n\r-------------ESP8266 Hardware Reset-------------\n\r");
    wait(0.5);
    reset=1;
    timeout=2;
    getreply();

    esp.baud(9600);   // change this to the new ESP8266 baudrate if it is changed at any time.
    //ESPsetbaudrate();   // include this routine to set a different ESP8266 baudrate
    ESPconfig();        // nclude Config to set the ESP8266 configuration
    pc.baud(9600);

}

//======================== THREADS =========================//

void gas_thread(void const *arg)
{
     while(1)
     {
        while(soundOn) Thread::yield(); // This helps the sound file for water
         Thread::wait(60);            // level play clearly

         /*
         mutex.lock();
         pc.printf("Gas Density: %3f\r\n", gas_density);
         mutex.unlock();
         */
         thMutex.lock();
         gas_density = gas_lvl.read();
         thMutex.unlock();
         if (gas_density_init - gas_density > gasDiff)
         {
             gasLed = 1;
             if (!gasAlerted)
             {
                wifi.lock();
                IFTTTgas();
                wifi.unlock();
                gasAlerted = true;
             }
         }
         else
         {
             gasAlerted = false;
             gasLed = 0;
         }
     }
}

void temp_thread(void const *arg)
{
    while(1)
    {

        while(soundOn) Thread::yield();
        thMutex.lock();
        sample_ftemp = temphumid.sample_ftemp();
        Thread::wait(60);
        thMutex.unlock();


        /*
        mutex.lock();
        pc.printf("Temperature: %d F\n\r", sample_ftemp);
        mutex.unlock();
        */

        if (sample_ftemp > 80 || sample_ftemp < 40)
        {
            tempLed = 1;
            if (sample_ftemp < 40)
            {
                if (!tempAlerted)
                {
                    tempAlerted = true;
                    wifi.lock();
                    IFTTTlowTemp(); // Send three messages back to back;
                    wifi.unlock();
                }
            }
            else
            {
                if (!tempAlerted)
                {
                    tempAlerted = true;
                    wifi.lock();
                    IFTTThighTemp();
                    wifi.unlock();
                }
            }
        }
        else
        {
            tempLed = 0;
            tempAlerted = false;
        }
    }
}

void humid_thread(void const *arg)
{
    while(1)
    {
        while(soundOn) Thread::yield();
        thMutex.lock();
        sample_humid = temphumid.sample_humid();
        Thread::wait(60);
        thMutex.unlock();

        /*
        mutex.lock();
        pc.printf("Humidity: %d %%\n\r", sample_humid);
        mutex.unlock();
        */

        if (sample_humid > 70)
        {
            humidLed = 1;
            if (!humidAlerted)
            {
                wifi.lock();
                IFTTThumid();
                wifi.unlock();
                humidAlerted = true;
            }
        }
        else
        {
            humidAlerted = false;
            humidLed = 0;
        }
    }
}

void water_thread(void const *arg)
{
    while(1)
    {

        thMutex.lock();
        water_level = water_lvl.read();
        thMutex.unlock();


        /*
        mutex.lock();
        printf("Water Level: %3.2f\r\n",water_level);
        mutex.unlock();
        */

        if (water_level > critWater)
        {
            waterLed = 1;

            if (!waterAlerted)
            {
                wifi.lock();
                IFTTTwater();
                wifi.unlock();
                waterAlerted = true;
            }

            //Thread::wait(100);
            FILE *wave_file;
            sound->set_priority(osPriorityHigh);
            soundOn = true;

            wave_file=fopen("/sd/mydir/Red_Alert.wav","r");
            waver.play(wave_file);

            soundOn = false;
            sound->set_priority(osPriorityNormal);
            Thread::wait(1000);
            fclose(wave_file);
        }
        else
        {
            waterLed = 0;
            waterAlerted = false;
        }
    }
}


int main()
{

    ESP8266_config();
    tt.start();
    if (time(NULL) < 1420070400) {
        setRTC();
    }

    gas_density_init = gas_lvl.read(); // Get inititial gas density in basement
    sample_ftemp = temphumid.sample_ftemp();
    wait_ms(60);
    sample_humid = temphumid.sample_humid();
    wait_ms(60);
    setServerValues(sample_ftemp,abs(gas_density_init - gas_density),sample_humid,water_lvl.read());
    startserver();

    /*
    IFTTTwater();
    IFTTThighTemp();
    IFTTTlowTemp();
    IFTTThumid();
    IFTTTgas();  */

    Thread thread1(gas_thread);
    Thread thread2(temp_thread);
    Thread thread3(humid_thread);
    Thread thread4(water_thread);

    sound = &thread4;

    // continuosly get AP list and IP
    while(1)
    {

       if(tt.read() > 5) { //let 5 seconds pass before updating

           setServerValues(sample_ftemp,gas_density - gas_density_init,sample_humid,water_level);
           gettime();
           getgas();
           gettemp();
           gethumid();
           getwater();
           wifi.lock();
           update_values();
           wifi.unlock();
           tt.reset();
           tt.start();
       }

       while(soundOn) Thread::yield();
       //sleep();
    }
}
