mbed Checkers
Overview
by David Cox and Parth Patel
For our project we implemented the popular strategy game Checkers. We utilized the uLCD-144-G2 screen from 4D systems, the navigational switch(joystick) component for player navigation, push buttons for player interaction with game pieces and the microsd card slot with a speaker component to provide sound effects. The navigation switch is used to move the cursor and push buttons are used to select, move, and delete game pieces.
Components
- uLCD Screen
- Navigation Switch (Digital Joystick)
- SD Card
- Speaker and 2N3904 General Purpose Amplifier*
- 3 Push Buttons*

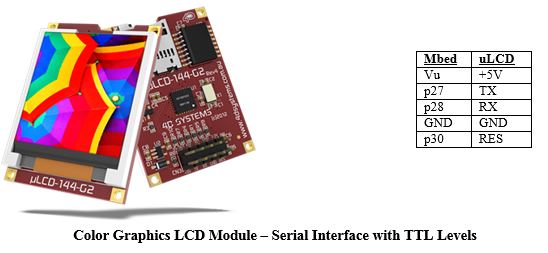

uLCD
Navigation Switch
Navigation Switch Pin Designation

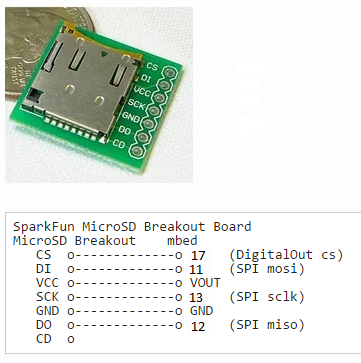

SD Card
Speaker
Amplifier
Amplifier and Speaker Pin Designation
Push Buttons
Video
Code
