AdBun-M3HQA

AdBun-M3HQA development board for Toshiba TMPM3HQFDAFG MCU

Overview¶

The TMPM3HQFDAFG is ARM® Cortex®-M3 based microcontroller, which provides, low-power, high-speed, high accuracy and fast interrupt response times required for real-time applications. This microcontroller has Noise resistance, variety of communication interfaces and timers. This microcontroller can be used for home appliances, OA equipment, household equipment, AV devices, and motor control devices.

Based on an ARM Cortex-M3 core, with a maximum operating frequency of 120 MHz, the TMPM3HQFDAFG incorporates 512 Kbyte of flash memory and 64 Kbyte.

TMPM3HQA Features¶

• TMPM3HQFDAFG in LQFP144 package
  • ARM®32-bit Cortex®-M3 CPU, 120 MHz max CPU frequency
  • 64KB RAM
  • 512KB Flash
  • TSPI (5)
  • I2C (4)
  • UART (8)
  • PWM (7)
  • 12bit ADC (21)
  • A-PMD(1)
  • 8bit DAC (2)
  • GPIO (135)

AdBun-M3HQA Feature¶

• Compatible with a wide range of commercially available shields
• Power option
  • USB-UART
  • DAP-USB
  • DC-Jack
• 4 Push Switch
• 4 LED
• 2 Variable resistors
• Built-in USB drag 'n' drop FLASH programmer

RAM size (64Kbytes) and BACKUP RAM (2Kbytes).

Pin Layout¶

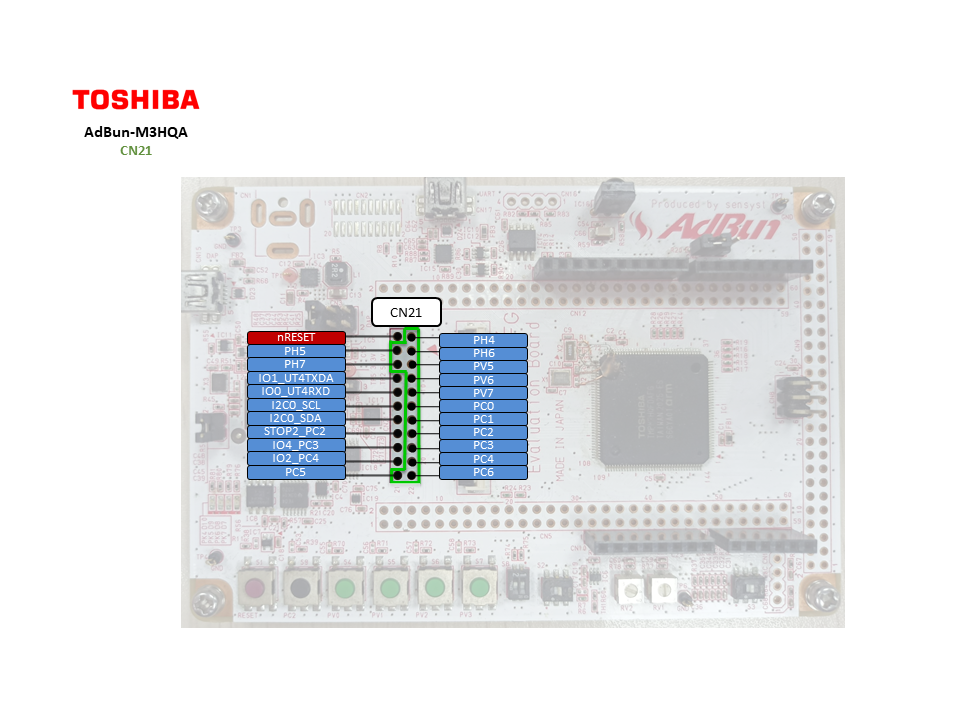

CN21 Pin Header¶

The green-framed pins of CN21 are working with 3.3V I/O without level-shifting and connected to the terminal of TMPM3HQA.

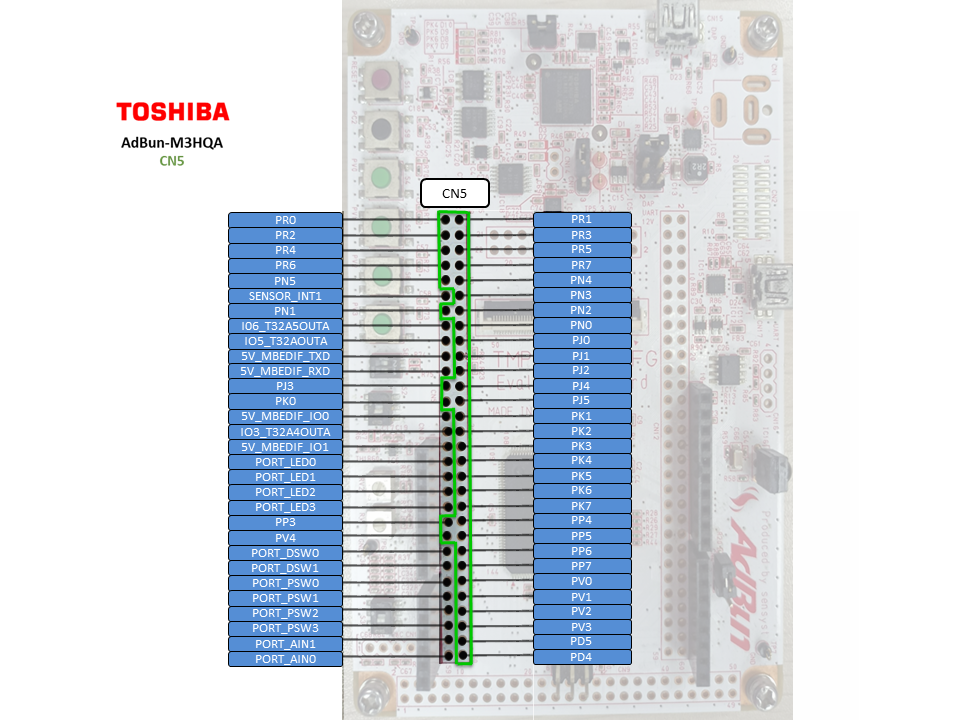

CN5 Pin Header¶

The green-framed pins of CN5 are working with 3.3V I/O without level-shifting and connected to the terminal of TMPM3HQA.

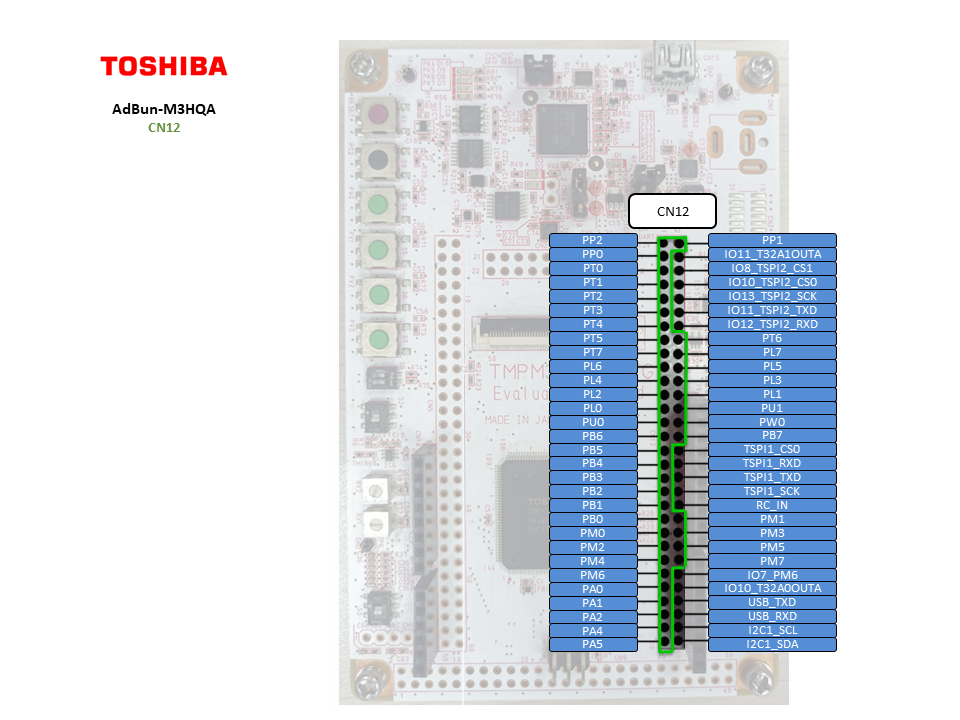

CN12 Pin Header¶

The green-framed pins of CN12 are working with 3.3V I/O without level-shifting and connected to the terminal of TMPM3HQA.

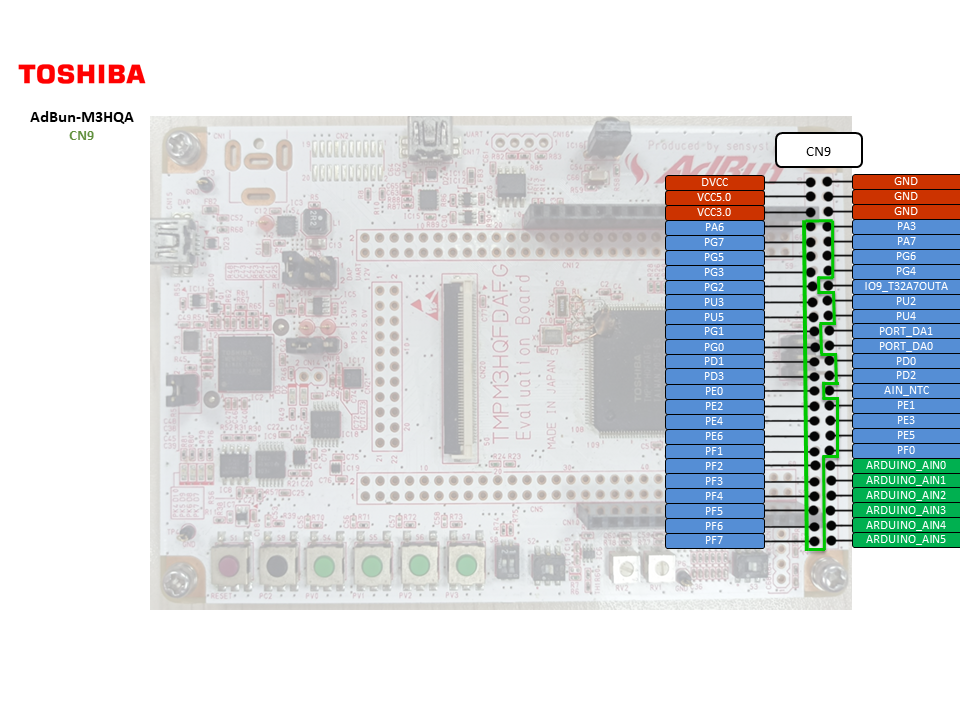

CN9 Pin Header¶

The green-framed pins of CN18 are working with 3.3V I/O without level-shifting and connected to the terminal of TMPM3HQA, therefore PF2 to PF7 can work as Analog IN with maximum voltage of 3.3V.

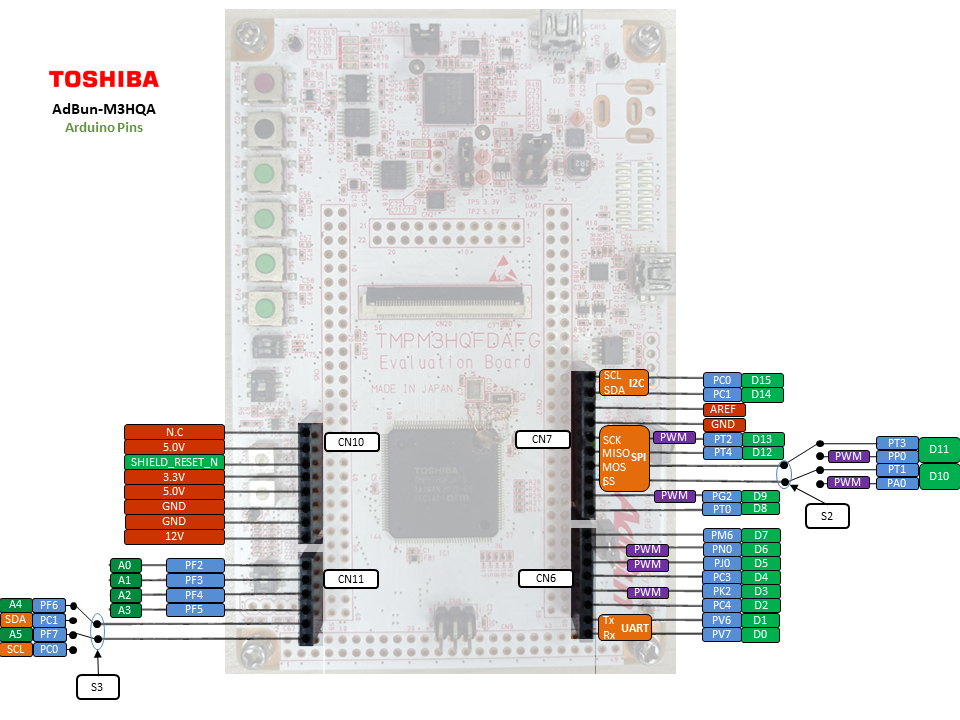

Arduino Pin Header¶

Arduino pins are mapped to CN6, CN7, CN10 and CN11.

Note: Before using Arduino pin, you need to short that connected Arduino pin on CN5, CN12, and CN9. PF2 to PF7 with level-shifting cannot work as Analog IN anymore.

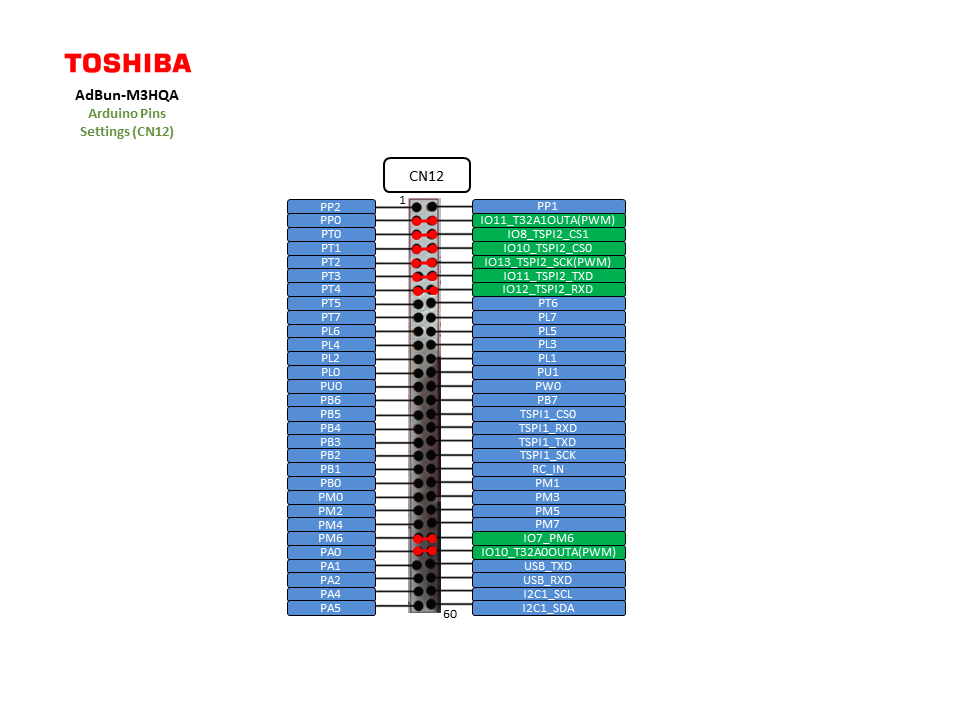

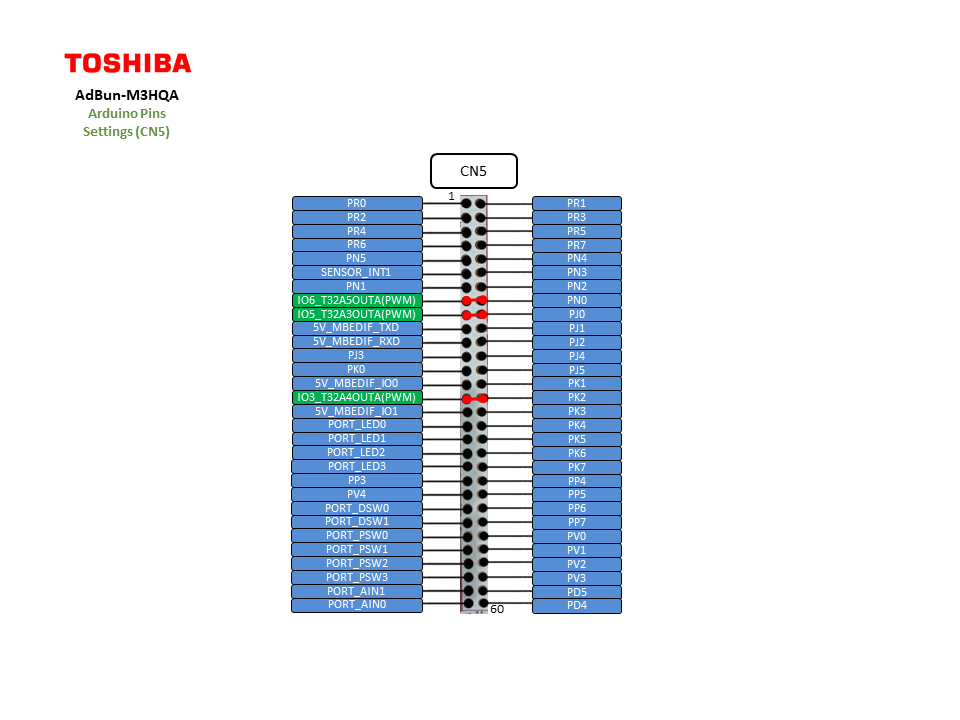

Arduino Pin Header Usage Setting¶

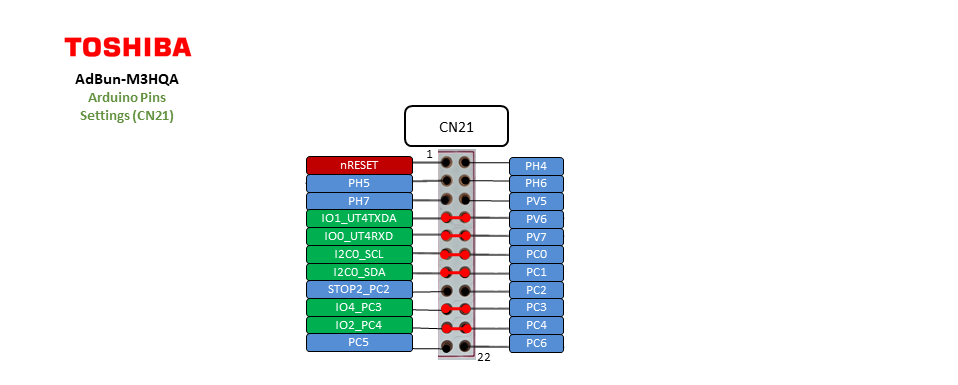

When using the Arduino's pin header, it is necessary to short-circuit the red line as shown below.

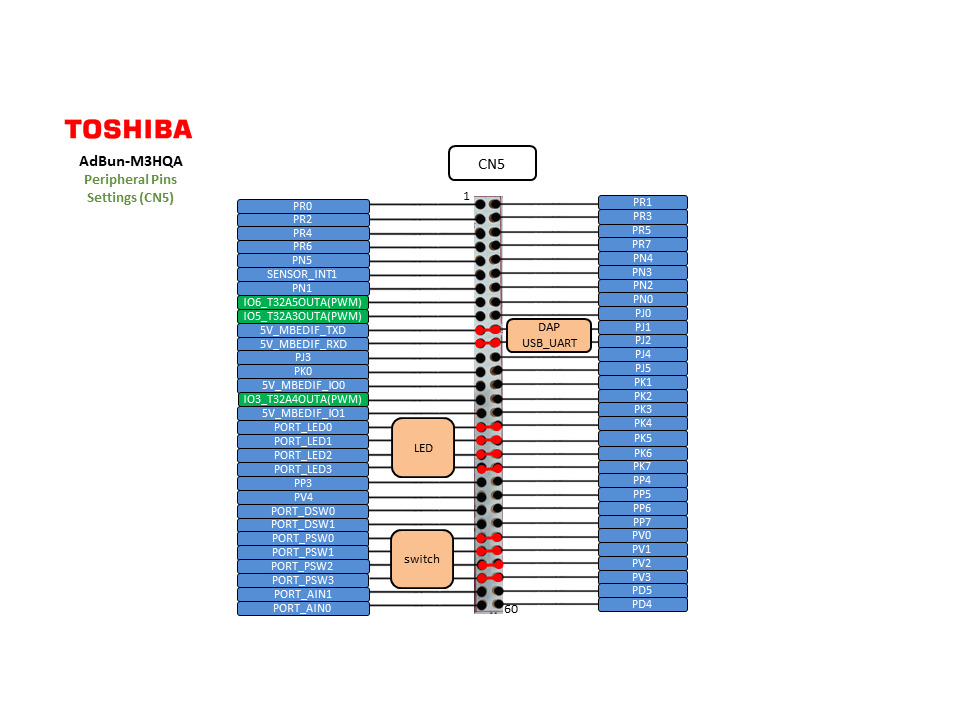

On Board Peripheral Usage Setting¶

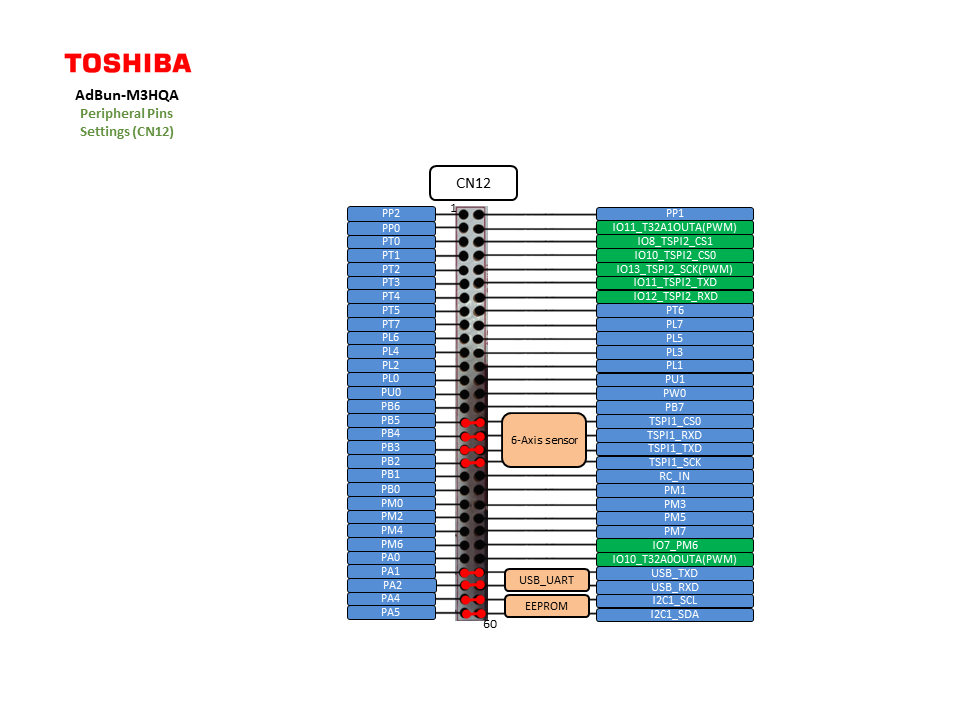

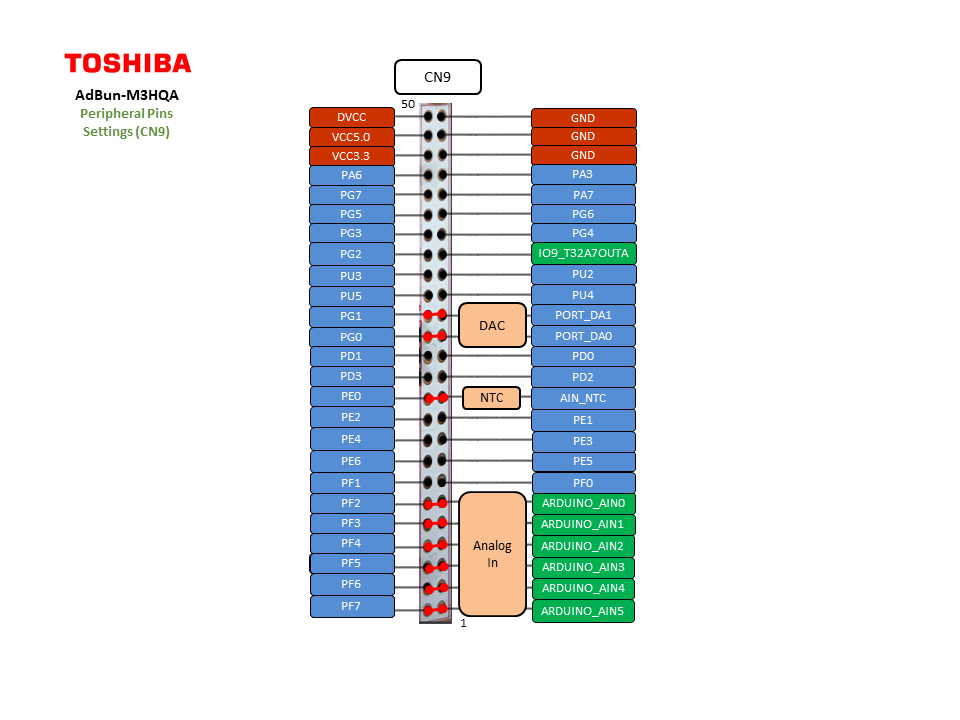

When using USB_UART, EEPROM and 6-axis sensor on the AdBun-M3HQA board, it is necessary to short-circuit the red line as shown below. When using DAC, NTC and Analogin on the AdBun-M3HQA board, it is necessary to short-circuit the red line as shown below. When using LED and SWITCH on the AdBun-M3HQA board, it is necessary to short-circuit the red line as shown below.

PWM Pins		UART Pins		I2C Pins		LED Pins		Switch Pins
PB0		CONSOLE_TX = PJ1		SDA = PC1		LED1 = PK4		SW1 = PV0
PC0		CONSOLE_RX = PJ2		SCL = PC0		LED2 = PK5		SW2 = PV1
PJ0						LED3 = PK6		SW3 = PV2
PK2						LED4 = PK7		SW4 = PV3
PN0
PL5
PG2

Arduino I/O Pins		Arduino Analog Pins		Arduino PWM Pins
D0 = PV7		A0 = PF2		D3
D1 = PV6		A1 = PF3		D5
D2 = PC4		A2 = PF4		D6
D3 = PK2		A3 = PF5		D9
D4 = PC3		A4 = PF6 (Depend on S3 setting)		D10 (Depend on S2 setting)
D5 = PJ0		A5 = PF7 (Depend on S3 Setting)		D11 (Depend on S2 setting)
D6 = PN0				D13
D7 = PM6
D8 = PT0
D9 = PG2
D10 = PT1 (Depend on S2 setting)
D11 = PT3 (Depend on S2 setting)
D12 = PT4
D13 = PT2
D14 = PC1
D15 = PC0

General Purpose Input / Output
PA0, PA1, PA2, PA3, PA4, PA5, PA6, PA7
PB0, PB1, PB2, PB3, PB4, PB5, PB6, PB7
PC0, PC1, PC2, PC3, PC4, PC5, PC6
PD0, PD1, PD2, PD3, PD4, PD5
PE0, PE1, PE2, PE3, PE4, PE5, PE6
PF0, PF1, PF2, PF3, PF4, PF5, PF6, PF7
PG0, PG1, PG2, PG3, PG4, PG5, PG6, PG7
PH0, PH1, PH2, PH3, PH4, PH5, PH6, PH7
PJ0, PJ1, PJ2, PJ3, PJ4, PJ5
PK0, PK1, PK2, PK3, PK4, PK5, PK6, PK7
PL0, PL1, PL2, PL3, PL4, PL5, PL6, PL7
PM0, PM1, PM2, PM3, PM4, PM5, PM6, PM7
PN0, PN1, PN2, PN3, PN4, PN5
PP0, PP1, PP2, PP3, PP4, PP5, PP6, PP7
PR0, PR1, PR2, PR3, PR4, PR5, PR6, PR7
PT0, PT1, PT2, PT3, PT4, PT5, PT6, PT7
PU0, PU1, PU2, PU3, PU4, PU5
PV0, PV1, PV2, PV3, PV4, PV5, PV6, PV7
PW0

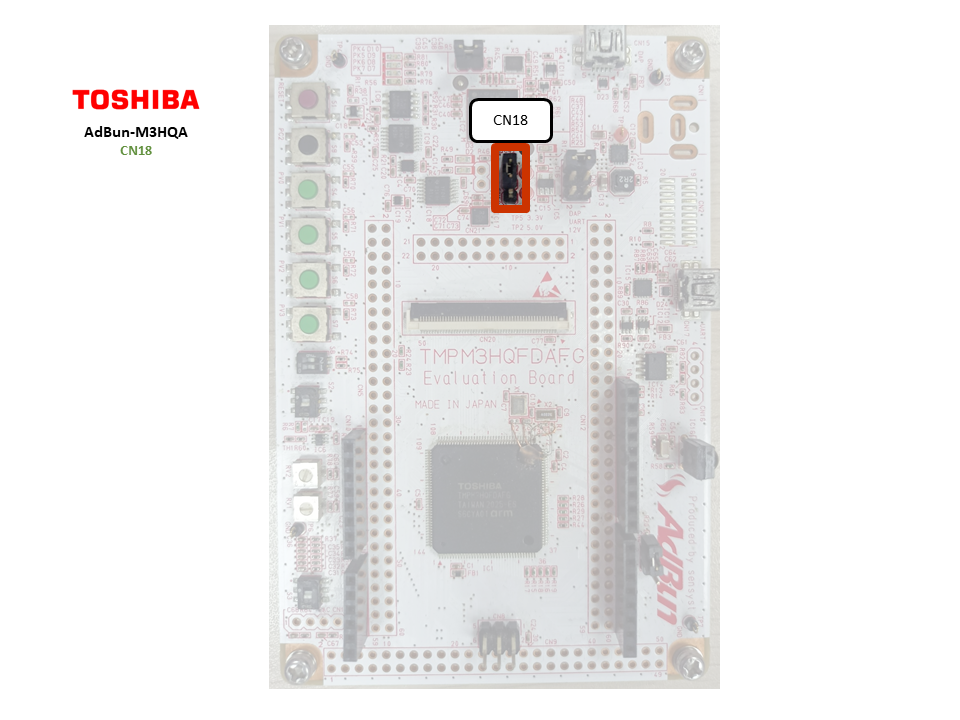

On Board Voltage Setting¶

On board voltage can be selected using CN18.

Short 1 and 2 pins using jumper for 3.3v or short 2 and 3 pins using jumper for 5v supply.

Technical Reference¶

Schematics¶

• Schematics

Data Sheet¶

• TMPM3HQA Data sheet
• TMPM3HQA Data sheet (Japanese)日本語

Interface Firmware (I/F)¶

Please update the interface firmware in the following way when upgrading, or if it has been deleted for some reasons.

1. Download Flash programmer Flash Programmer_M366_202112.zip to program I/F firmware.

2. Download AdBun-M3HQA I/F Firmware tmpm366_tmpm3hqa_stk_firmware-v254.hex

To update I/F firmware, old firmware needs to be erased before updating the firmware.

Mandatory On Board Jumper Settings

1. Short pins 5,6 of CN3 to supply power to board

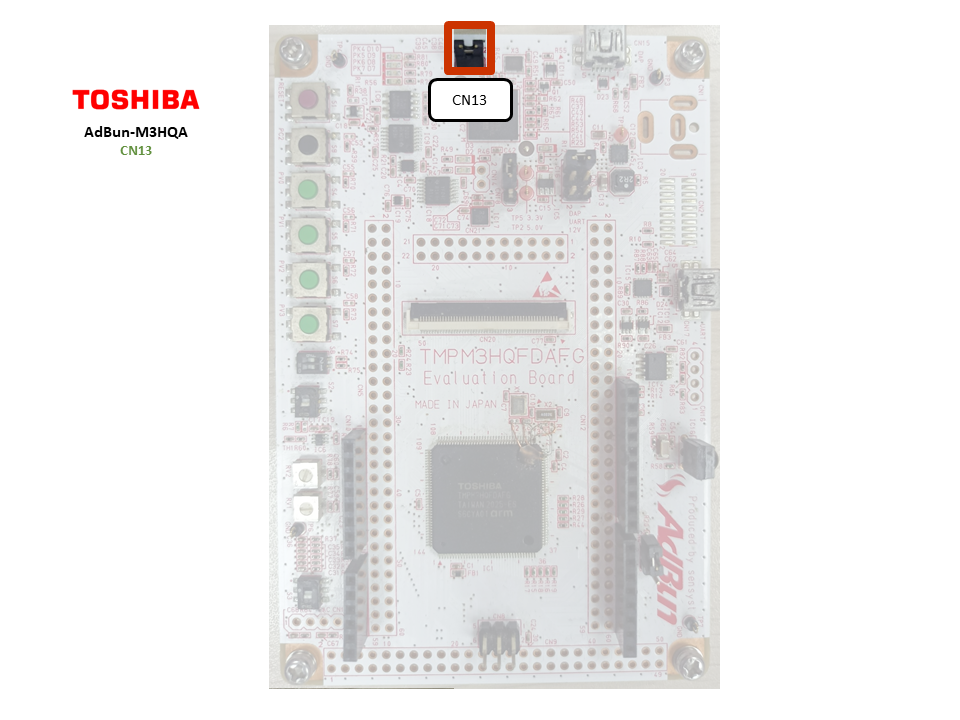

2. Short CN13 to enable DAP


How to erase and program I/F firmware

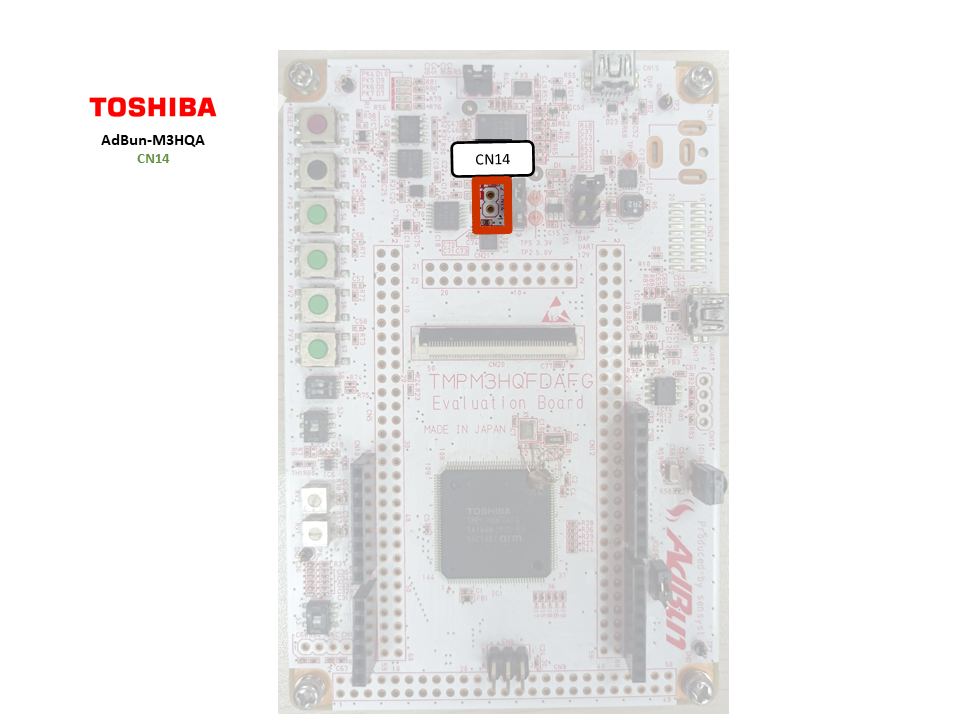

1. Short CN14

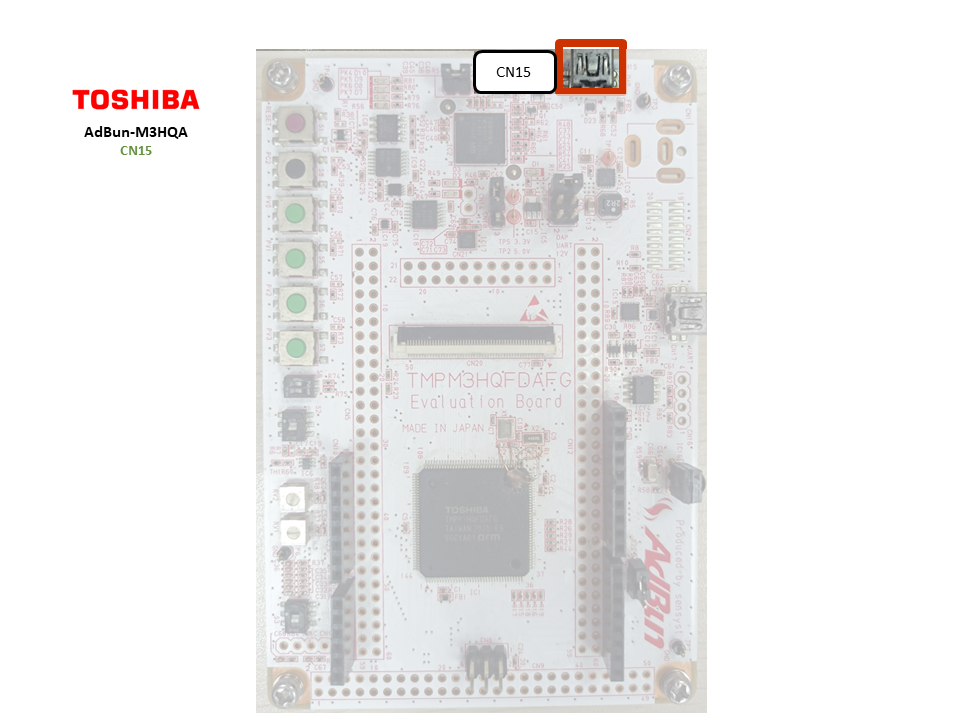

2. Connect PC to DAP(USB) on AdBun-M3HQA by mini USB cable

3. Start up Flash Programmer
   Click FlashProgIT.exe on your PC.
   When you use the flash programmer, you need to agree "SOFTWARE LICENSE AGREEMENT"

4. Select [Device] tab
5. Select Series "TX03 Series"
6. Select Device "TMPM366FY" and push Apply button on Device tab.
7. Select [Object File] tab and browse the downloaded AdBun- M3HQA Firmware
8. Select "USB" at Communication tab and push OK button.
9. Select [Edit]-[Chip Erase] from the menu bar.
   (If you meet password error, select [Setup] -[ Password] from the menu bar and select "Device is Blank" )
   (If you meet command error, reconnect USB cable and try [Edit]-[Chip Erase] again

10. Once erase is completed, Select [Edit] - [Erase/Program] from the menu bar.
    (If you meet password error, select [Setup] -[ Password] from the menu bar and select "Device is Blank" )
    (If you meet command error, reconnect USB cable and try [Edit]-[Erase/Program] again

11. Remove jumper on CN14

12. Reconnect USB cable
    DAPLink drive will appear if I/F firmware is programmed successfully
