Low Power Timout. More...

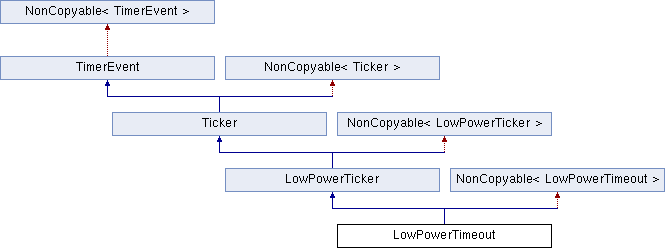

Inheritance diagram for LowPowerTimeout:

Public Member Functions
void	attach (Callback< void()> func, float t)
	Attach a function to be called by the Ticker, specifying the interval in seconds. More...

template<typename T , typename M >
void	attach (T *obj, M method, float t)
	Attach a member function to be called by the Ticker, specifying the interval in seconds. More...

void	attach_us (Callback< void()> func, us_timestamp_t t)
	Attach a function to be called by the Ticker, specifying the interval in microseconds. More...

template<typename T , typename M >
void	attach_us (T *obj, M method, us_timestamp_t t)
	Attach a member function to be called by the Ticker, specifying the interval in microseconds. More...

void	detach ()
	Detach the function. More...

Static Public Member Functions
static void	irq (uint32_t id)
	The handler registered with the underlying timer interrupt. More...

Detailed Description

Low Power Timout.

Definition at line 36 of file LowPowerTimeout.h.

Member Function Documentation

inherited

Attach a function to be called by the Ticker, specifying the interval in seconds.

Parameters

func	pointer to the function to be called
t	the time between calls in seconds

Definition at line 84 of file Ticker.h.

inherited

Attach a member function to be called by the Ticker, specifying the interval in seconds.

Parameters

obj	pointer to the object to call the member function on
method	pointer to the member function to be called
t	the time between calls in seconds

Deprecated:: The attach function does not support cv-qualifiers. Replaced by attach(callback(obj, method), t).

Definition at line 102 of file Ticker.h.

inherited

Attach a function to be called by the Ticker, specifying the interval in microseconds.

Parameters

func	pointer to the function to be called
t	the time between calls in micro-seconds

Note: setting t to a value shorter than it takes to process the ticker callback causes the system to hang. Ticker callback is called constantly with no time for threads scheduling.

inherited

Attach a member function to be called by the Ticker, specifying the interval in microseconds.

Parameters

obj	pointer to the object to call the member function on
method	pointer to the member function to be called
t	the time between calls in microseconds

Deprecated:: The attach_us function does not support cv-qualifiers. Replaced by attach_us(callback(obj, method), t).

Definition at line 132 of file Ticker.h.

void detach ( )

inherited

Detach the function.

static void irq ( uint32_t id )

staticinherited

The handler registered with the underlying timer interrupt.

Parameters

id	Timer Event ID
