Si114x

Optical sensor which can measure visible light, IR and UV, and with built-in LED drivers can also measure reflectance

Hello World

Import programSi114x_HelloWorld

Example code to create a heartbeat sensor using the Si1146 on Silicon Lab's Biometrics expansion board for the Wonder Gecko

Last commit 25 Aug 2015 by Erik -

Library

Import librarySi114x

Library for Si114x optical sensors. Currently intended for the Si1146, although it will work also for the Si1145, and without full functionality for the Si1147

Last commit 23 Aug 2015 by Erik -

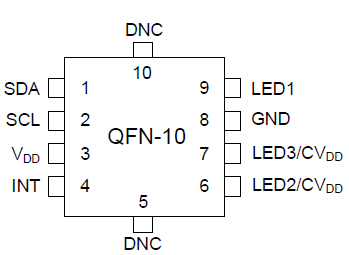

Pinout

Datasheet

http://www.silabs.com/Support%20Documents/TechnicalDocs/Si1145-46-47.pdf
