A file system object. More...

#include <FileSystem.h>

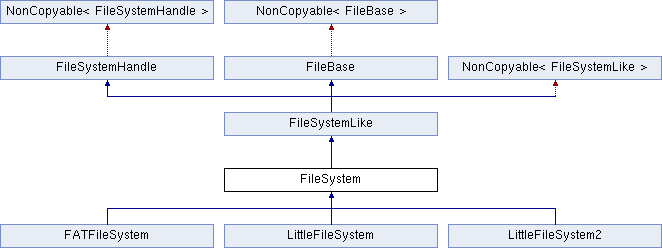

Inheritance diagram for FileSystem:

Public Member Functions
	FileSystem (const char *name=NULL)
	File system lifetime. More...

virtual int	mount (BlockDevice *bd)=0
	Mount a file system to a block device. More...

virtual int	unmount ()=0
	Unmount a file system from the underlying block device. More...

virtual int	reformat (BlockDevice *bd=NULL)
	Reformat a file system. More...

virtual int	remove (const char *path)
	Remove a file from the file system. More...

virtual int	rename (const char path, const char newpath)
	Rename a file in the file system. More...

virtual int	stat (const char path, struct stat st)
	Store information about the file in a stat structure. More...

virtual int	mkdir (const char *path, mode_t mode)
	Create a directory in the file system. More...

virtual int	statvfs (const char path, struct statvfs buf)
	Store information about the mounted file system in a statvfs structure. More...

Static Public Member Functions
static FileSystem *	get_default_instance ()
	Return the default file system. More...

Protected Member Functions
virtual int	open (FileHandle *file, const char path, int flags)
	defined(DOXYGEN_ONLY) More...

virtual int	open (DirHandle *dir, const char path)
	Open a directory on the filesystem. More...

Detailed Description

A file system object.

Provides file system operations and file operations for the File and Dir classes on a block device.

Implementations must provide at minimum file operations and mount operations for block devices.

Note: Synchronization level: Set by subclass

Definition at line 50 of file FileSystem.h.

Constructor & Destructor Documentation

FileSystem ( const char * name = NULL )

File system lifetime.

Parameters

name	Name to add file system to tree as.

Member Function Documentation

static FileSystem* get_default_instance ( )

static

Return the default file system.

Returns the default file system based on the default block device configuration. Use the components in target.json or application config to change the default block device and affect the default filesystem. SD block device => FAT filesystem QSPIF, SPIF, DATAFLASH or FLAHIAP block device => LITTLE filesystem

An application can override all target settings by implementing FileSystem::get_default_instance() - the default definition is weak, and calls get_target_default_instance().

virtual int mkdir	(	const char *	path,
		mode_t	mode
	)

virtual

Create a directory in the file system.

Parameters

path	The name of the directory to create.
mode	The permissions with which to create the directory.

Returns: 0 on success, negative error code on failure.

Reimplemented from FileSystemHandle.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int mount ( BlockDevice * bd )

pure virtual

Mount a file system to a block device.

Parameters

bd	Block device to mount to.

Returns: 0 on success, negative error code on failure.

Implemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int open	(	FileHandle **	file,
		const char *	path,
		int	flags
	)

protectedvirtual

defined(DOXYGEN_ONLY)

Implements FileSystemHandle.

virtual int open	(	DirHandle **	dir,
		const char *	path
	)

protectedvirtual

Open a directory on the filesystem.

Parameters

dir	Destination for the handle to the directory
path	Name of the directory to open

Returns: 0 on success, negative error code on failure

Reimplemented from FileSystemHandle.

virtual int reformat ( BlockDevice * bd = NULL )

virtual

Reformat a file system.

Results in an empty and mounted file system.

Parameters

bd	Block device to reformat and mount. If NULL, the mounted Block device is used. Note: If mount fails, bd must be provided. Default: NULL

Returns: 0 on success, negative error code on failure.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int remove ( const char * path )

virtual

Remove a file from the file system.

Parameters

path	The name of the file to remove.

Returns: 0 on success, negative error code on failure.

Reimplemented from FileSystemHandle.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int rename	(	const char *	path,
		const char *	newpath
	)

virtual

Rename a file in the file system.

Parameters

path	The existing name of the file to rename.
newpath	The new name of the file.

Returns: 0 on success, negative error code on failure.

Reimplemented from FileSystemHandle.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int stat	(	const char *	path,
		struct stat *	st
	)

virtual

Store information about the file in a stat structure.

Parameters

path	The name of the file to find information about.
st	The stat buffer to write to.

Returns: 0 on success, negative error code on failure.

Reimplemented from FileSystemHandle.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int statvfs	(	const char *	path,
		struct statvfs *	buf
	)

virtual

Store information about the mounted file system in a statvfs structure.

Parameters

path	The name of the file to find information about.
buf	The stat buffer to write to.

Returns: 0 on success, negative error code on failure.

Reimplemented from FileSystemHandle.

Reimplemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.

virtual int unmount ( )

pure virtual

Unmount a file system from the underlying block device.

Returns: 0 on success, negative error code on failure.

Implemented in LittleFileSystem2, LittleFileSystem, and FATFileSystem.
