Heart Rate SpO2 Algorithm EvKit Health Monitor Development System Board MAXREFDES220

The MAXREFDES220# is a featherwing, finger- based sensor evaluation kit which outputs I2C processed data for the following: Heart Rate (HR) in bpm (beats per minute), SpO2 (blood oxygen saturation level). The IC is pre-loaded with algorithm, sensor driver

Hello World

Import programMAXREFDES220_HR_SPO2_MONITOR

Host software for the MAXREFDES220 Heart Rate Monitor Smart Sensor. Hosted on the MAX32630FTHR.

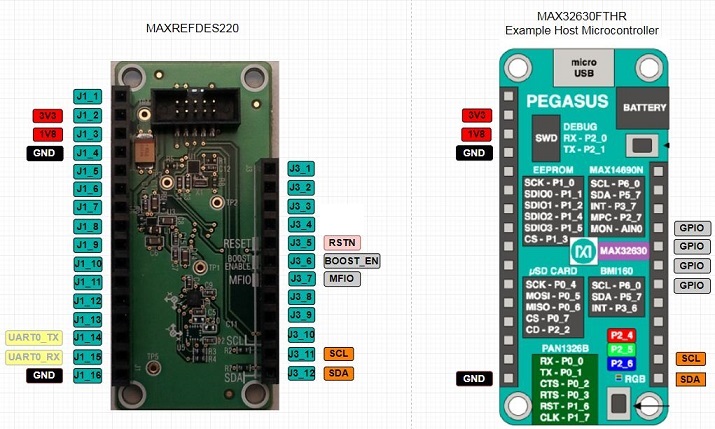

Pinout

Notes

The MAXREFDES220# Smart Sensor FeatherWing development board provides an integrated hardware and software solution which allows you to quickly deploy heart rate and SpO2 monitor features into your product design. This board has two chips on it: the MAX30101 and the MAX32664. The MAX30101 chip is a low power optical heart rate monitor chip which has adjustable sample rates and adjustable LED currents. There are three internal LEDs (IR, red, green) on the MAX30101 chip. The HR and SpO2 (pulse-oximeter) default algorithm uses the IR and red LEDs. The MAX32664 is a small, low cost, power optimized micro-controller. The microcontroller is pre-flashed with C code for finger-based pulse rate and SpO2 (pulse-ox) monitoring. The processed data and raw data are accessible via the I2C bus. Bootloader software is included to allow for future algorithms or updates to the algorithm (In-Application Programming/OTA).

The MAXREFDES220 has been tested on the MAX32630FTHR Ev-Kit board and sample host software is below.

Sample Host Microcontroller Software for MAXREFDES220

Import programMAXREFDES220_HR_SPO2_MONITOR

Host software for the MAXREFDES220 Heart Rate Monitor Smart Sensor. Hosted on the MAX32630FTHR.

Library C source code for Maxim Sensor Hub, MAX32664/MAXREFDES220

Import libraryMaxim_Sensor_Hub_Communications_Library

Source code for Maxim Sensor Hub Communications. Mostly C library for MAX32664 sensor hub communications.

Block Diagram

/media/uploads/phonemacro/blockdiagrammaxrefdes220_me11_os24.jpg

PC GUI receiving processed data from the MAXREFDES220

/media/uploads/phonemacro/maxrefdes220_heart_rate_sp02_gui.jpg

Datasheet and User Guide for MAX32664, MAX30101

Design Resources

Product Page

Purchase the MAXREFDES220#
